Summary of S register Behaviors

This table contains definitions of the S register commands for the six possible S register values.The following figure illustrates the reading and writing rules. The figure refers to numbers 1-6 in the S register Commands.

Sregister Commands

Number      Pointer/Result Code       Read/Result Code       Write/Result Code


1           Do not Point, ERROR       N/A                    N/A


2           Point, OK                 Say 000, OK            Do not Write, say OK


3           Point, OK                 Say 000, OK            Do not Write, say OK


4           Point, OK                 Read xxx, OK           Do not Write, say OK


5           Point, OK                 Read xxx, OK           Write valid bits, say OK


6           Point, OK                 Read xxx, OK           Write with clamps, say OK

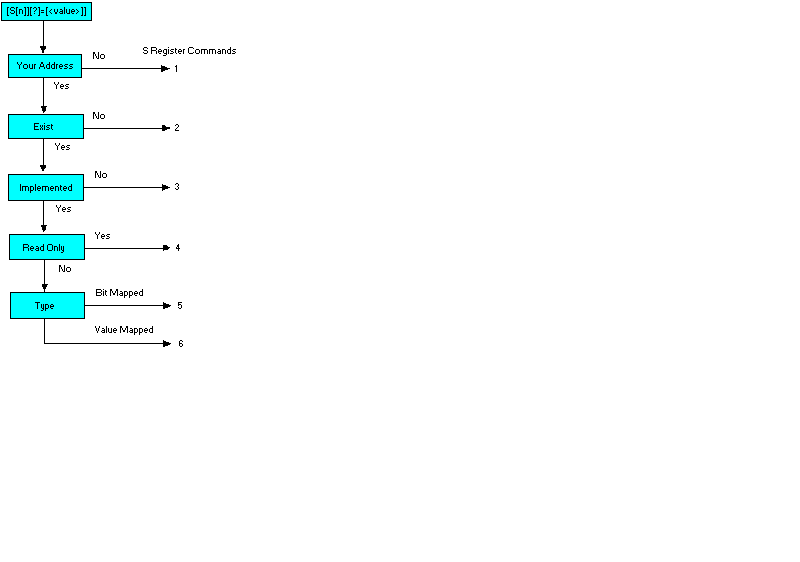

Sregister Rules (Figure)
